System Flow Overview

Drew Marine Logo

​
Integrated Methods

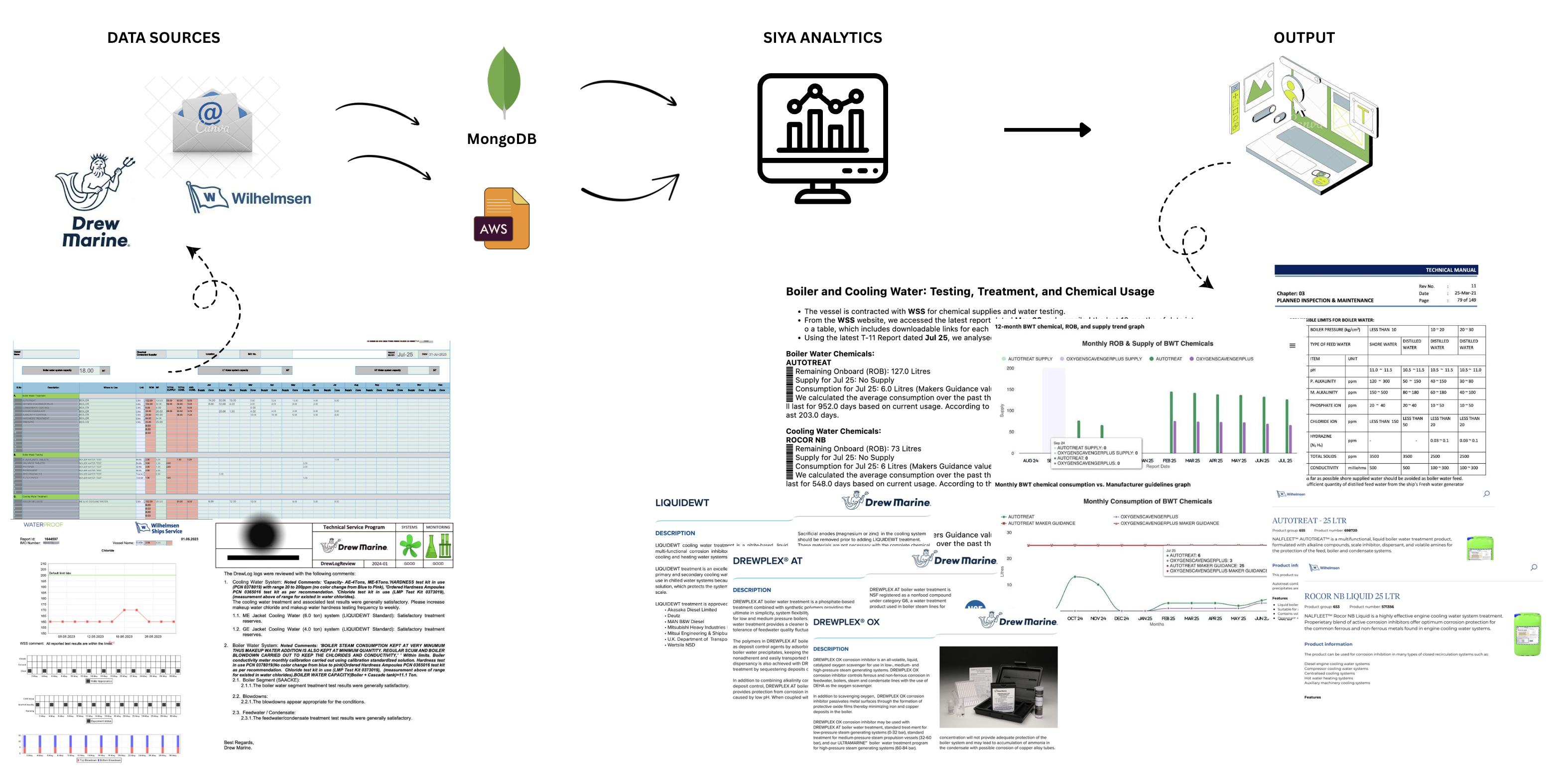

Maritime Chemical Management: System Process Flow

1. Inputs
Vessel
Reports
Shore
Reports
Supplier
Data
→
2. Processing
Integration
& Validation
Chemical
Analysis
ROB
Calculations
→
3. Analytics
Predictive
Models
Compliance
Monitoring
Performance
Metrics
→
4. Outputs
Dashboards
Auto
Reports
Alerts
→
5. End Users
Fleet
Managers
Vessel
Operations
Compliance
Teams

​
Detailed Data Processing Workflow

The system excels at transforming unstructured data from operational reports into actionable intelligence. The automated workflow is as follows:

​
1. Data Ingestion

An automated service monitors an inbox for key documents, including T-11 Chemical Inventory forms, monthly testing logs, and service reports, typically sent as PDF attachments.

​
2. Secure Storage

Incoming files are immediately archived in a secure AWS S3 bucket, creating a durable and auditable data lake of all original documentation.

​
3. Data Extraction

An AWS Lambda function triggers on new file uploads. It uses Optical Character Recognition (OCR) and intelligent parsing to extract key data points: vessel name, date, chemical levels (ROB), test results, and technician comments.

​
4. Validation & Analysis

The structured data is fed into the core processing engine for validation. The engine calculates consumption rates, compares water quality against manufacturer limits, and computes Key Performance Indicators (KPIs).

​
5. Insight Generation

Finally, the analyzed data powers interactive dashboards with rich graphical representations, triggers automated alerts for anomalies (e.g., low inventory, off-spec tests), and generates comprehensive reports for fleet managers and compliance teams. The alert system compares real-time data against the official guidance values provided by suppliers like Drew Marine and WSS to ensure strict adherence to their standards.

​
Core Features

  • Real-time Inventory Monitoring: Live tracking of all chemical levels.
  • Automated Consumption Analysis: Identifies trends and flags deviations from norms.
  • Predictive ROB Calculations: Forecasts remaining days of supply to prevent shortages.
  • Multi-supplier Integration: Seamlessly handles data from Drew Marine, WSS, and others.
  • Interactive Data Visualization: User-friendly dashboards with graphical representations of chemical trends, consumption rates, and compliance status.
  • Supplier-Specific Alerting: Triggers alerts based on deviations from the official guidance values and operational limits provided by both Drew Marine and WSS.
  • Compliance Reporting: Automated generation of reports for regulatory adherence.

​
Technical Architecture

​
Data Sources

The platform ingests data from three primary sources:
  1. Vessel Operations: T-11 reports, consumption logs, and delivery notes.
  2. Supplier Networks: Supply records and service reports from chemical suppliers.
  3. Document Storage: All raw files (PDFs, spreadsheets) are stored and processed from AWS S3.

​
Chemical Categories Monitored

  • Boiler Water (BWT): DREWPLEX AT, DREWPLEX OX, AMERZINE, AGK100, AUTOTREAT, OXYGENSCAVENGERPLUS.
  • Cooling Water (CWT): LIQUIDEWT, ROCOR NB.

​
Quality Assurance & Data Integrity

  • Validation Rules: The system sanitizes inputs, validates dates for temporal consistency, and standardizes chemical names and units across all sources.
  • Error Handling: Gracefully manages missing data, uses fallback calculations, and provides clear alerts for data gaps to ensure reliability.

​
Operational Benefits

  • For Fleet Managers: Enables proactive maintenance, optimizes procurement costs, ensures compliance, and mitigates operational risks.
  • For Vessel Crew: Provides immediate inventory status, helps optimize consumption, and centralizes all treatment records and documentation.

​
System Integration & Infrastructure

  • Database: Utilizes MongoDB for flexible, scalable data storage and high-performance queries.
  • Cloud Services: Built on AWS, leveraging S3 for storage, Lambda for serverless processing, and API Gateway for secure data access.
